●Chamber Dimension (W x D x H) : 250×160×250----기타 사양도 주문제작
●Chamber System Type : 3 - Zone Type
● System Mathod : Basket R-L Move
●Temp Controller : Program Controller
●Recorder : SR-1000, YOKOGAWA
●Temp Range:High Temp Chamber : Min  20℃~ Max  150℃---기타 사양도 주문제작
                    LOw Temp Chamber : Min   0℃~ Max -40℃  ---기타 사양도 주문제작
●Accuracy : ±0.1℃
●Heating Time : 20 ~ +150℃, 30Min
●Cooling Time : 0 ~ -40℃, 60Min
●Material : Interior : SUS304 Polishing Plate
                 Exterior : SS41 Steel Plate Color Powder Coating
●Safety Devices
             Refrigerator Over Load Relay
             Over Heat Protection Controller
             EOCR
             Short Circuit Breaker
             Protection Safety Fuse
             Alarm, Buzzer

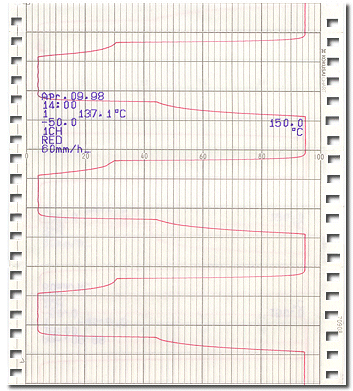

Recorder graph
