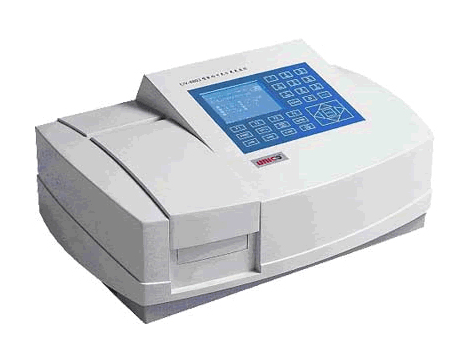

●UNICO SQ-4802 UV/VIS SPECTROPHOTOMETER
|
|
| |
UNICO SQ-4802 is a Double beam design.
It is a stand-alone
model with 1.8 nm fixed bandwidth and has all the features that SpectroQuest
line offers in a stand-alone unit.
The two detectors are measuring sample
and reference respectively and simultaneously for optimizing measurement
accuracy.
It provides excellent performance for measurements in the range of
190nm to 1100nm.
It is suitable for pharmaceutical, biochemical and clinical
lab applications as well as routine applications such as quantitative analyses,
kinetics, spectrum scanning, multiple components and DNA/Protein.
Optional
PC download software and PC Windows® application software make this instrument
versatile
- 115V/60Hz or
230V/50Hz Switchable
- Choice of single
beam, split beam or double beam designs
- Fixed or variable
slits (bandwidths)
- PC models or
Stand-alone models with large LCD display
- Sealed and
solvent-resistant tactile keypad with alpha-numeric entry for user file names
and user entry of units
- Pre-aligned
deuterium lamp for easy lamp replacement. Lamp usage and the status of the lamps
may be monitored
- Powerful built-in
or PC Windows® software including sophisticated utility programs
- Data
Download-to-PC software for stand-alone models (optional)
- Online software
upgrade capability via Internet (for stand-alone models)
- Full A4 print-outs
of graphs and tables of results with popular inexpensive printers such as HP or
Epson Deskjet
- Real-time clock
for date and time stamping of results
- Performance
validation and report (GLP compliance)
|
| |
|
|
 |
| SPECIFICATIONS |
SpectroQuest 4802 |
| Optical
Specifications |
| Wavelength
Range |
190 - 1100
nm |
| Spectral
Bandwidth |
1.8
nm |
| Monochromator |
Double beam
Littrow type, grating 1200 lines/mm |
| Wavelength
Accuracy |
±0.3 nm
|
| Wavelength
Repeatability |
±0.2
nm |
| Wavelength
Calibration |
automatic at
start |
| Light
Source |
Tungsten
Halogen/Deuterium Lamp |
| Detector |
Solid Silicon
Photodiode |
| Photometric
Readout |
1/4 VGA
320X240 pixels backlit LCD |
| Photometric
Range |
0 -
200%T
-0.3 - 3.0A
0 - 9999C |
| Photometric
Accuracy |
±0.3%T |
| Zero
Drift |
< 0.002A
per hour after warm-up |
| Baseline
Flatness |
±0.004A |
| Stability |
0.001A/h at
500 nm |
| Stray
Light |
<
0.15%T |
| Scanning
Speed |
Hi, Med., Low.
Max. 1000 nm/min |
| Physical
Characteristics |
| Standard
Sample Holder |
4-position
Cell Holder |
| Analogue/Digital Output |
Digital, RS232
Serial, Centronics Parallel |
| Dimensions |
620(L) x
400(W) x 280(H) mm |
| Weight |
24 kg /
53lbs |
| Shipping
Dimensions |
720(L) x
525(W) x 370(H) mm |
| Shipping
Weight |
28 kg / 62
lbs |
| Power
Requirements |
115V/60Hz or
230V/50Hz, switchable |
| Operating
Temperature |
Room
temperature: 22 ±2°C |
| Humidity
Range |
less than
85% |
| Safety
Certificate |
CE |
|
