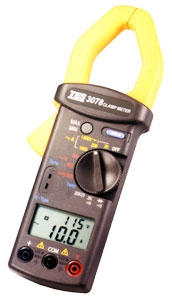

전기/전자계측기AC Digital Clamp Meter(1000A)TES-3078





TES-3078



●Dual LCD display to show Amp/V & V/Hz simultaneously
●ACA and ACV test simultaneously
●Temperature ℃ & ℉ measurement
●MAX/Data Hold
●1000A AC & 600V AC



ELECTRICAL SPECIFICATIONS :





 ■ AC Current(AC 600V voltage test simultaneously)

Range

Resolution

Accuracy

Frequency Response

Overload Protection

20A

0.01A

±(2%+5)

40~400Hz

1100A

200A

0.1A

1000A

1A



 ■ AC Voltage

Range

Resolution

Accuracy

Input
Impedance

Frequency
Response

Overload
Protection

200V

0.1V

±(1.2%+5)

1MΩ

40~400Hz

600Vrms

600V

1V



 ■ Frequency

Range

Resolution

Accuracy

Input Impedance

Overload Protection

2KHz

1Hz

±(0.1%+1)

1MΩ

600Vrms



 ■ DC Voltage

Range

Resolution

Accuracy

Input Impedance

Overload Protection

200V

0.1V

±(0.75%+2)

1MΩ

660Vrms



 ■ Resistance(Ω)

Range

Resolution

Accuracy

Open Circuit Voltage

Overload protection

2KΩ

1Ω

±(1%+5)

≤ 0.5V DC

660Vrms

20KΩ

10Ω



 ■ Temperature(℃/℉)

Range

Resolution

Accuracy

-50℃~0℃(-58℉~32℉)

1℃/1℉

±(3% + 5℃) ±(3% + 8℉)

0℃~400℃(32℉~752℉)

1℃/1℉

±(0.5% + 2℃) ±(0.5% + 4℉)

400℃~1300℃(752℉~2000℉)

1℃/1℉

±(3% + 5℃) ±(3% + 8℉)



 ■ Audible continuity

Range

Resolution

Open Circuit Voltage

Overload protection

≤ 30Ω

≤ 0.5V DC

600Vrms



 ■ Diode test

Range

Resolution

Accuracy

MAX Test
Current

Open Circuit
Voltage

Overload
Protection

1mV

±(3% + 2)

0.8mA

3V

600Vrms





 GENERAL SPECIFICATIONS :

  • Numerical Display : 3-1/2 digit liquid crystal dual display (LCD) maximum reading 1999
  • Range Selection : All ranges are selected by a single range switch
  • Over Range Indication : LCD will show an "OL"
  • Sampling Rate : 2 times/sec
  • Power Source : one 006p 9V or IEC 6F22 or NEDA 1604 Battery
  • Battery Life : 120hr approx.
  • Polarity : Automatic polarity " - " display for negative input
  • Operating & storage/Temperature and Humidity
                  : 0℃ to 40℃(32℉ to 104℉) < 80%RH.
                   -10℃ to 60℃(14℉ to 140℉) < 70%RH
  • Dimensions : 228(L) x 76(W) x 39(H)mm
  • Weight : Approx. 370g
  • Jaw Opening Diamete : Cables Φ40mm
  • Accessories : Battery, Manual, Test Leads, Carrying Case
