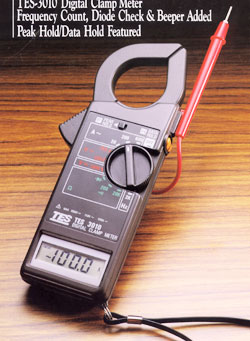

전기/전자계측기AC Digital Clamp Meter(1000A)TES-3010/3012





TES-3010/3012



 ●ACA : 20A, 200A, 600A(3010), 1000A(3012)
●PEAK HOLD, DATA HOLD
●FREQUENCY COUNT, DIODE CHECK
●CONTINUITY BUZZER
●LOW BATTERY INDICATION
●UNIT & SIGN DISPLAY



■ AC Current

Range

Resolution

Accuracy(50Hz/60Hz)

Overload

protection

20A

10mA

±(2%rdg + 5dgts)

1000A

200A

100mA

600A

1A

1000A



 ■ DC Voltage

Range

Resolution

Accuracy

Input

impedance

Overload

protection

1000V

1V

±(0.8%rdg + 2dgts)

10MΩ

DC1100V AC800V



 ■ AC Voltage

Range

Resolution

Accuracy(40Hz~400Hz)

Input

impedance

Overload

protection

200V

100mV

±(1.2%rdg + 3dgts)

10MΩ

DC1100V AC800V

750V

1V



 ■ Resistance(Ω)

Range

Resolution

Accuracy

Max.Open circuit

Voltage

Overload

protection

200Ω

100mΩ

±(1%rdg + 2dgts)

3.5V

350Vrms

20kΩ

10Ω

0.3V



 ■ Frequency(Hz) (10Hz-2KHz)

Range

Resolution

Accuracy

Max. Input

Sensitivity

Max. Allowable Applied Voltage

2KHz

1Hz

±(1%rdg + 2dgts)

100mV

350Vrms



 ■ Diode

Range

Resolution

Max. Test
Current

Max. Open Circuit
Voltage

Over Voltage
Protection

1mV

1.5mA

3.5V

350Vrms



 ■ Continuity(BEEPER)

Range

Resolution

Operation Resistance

Max. Open Circuit Voltage

Over Voltage
Protection

0.1Ω

Below 100Ω

3.5V

350Vrms





 Peak Hold Measurement (23℃ ±5℃Below 80% RH)



 ■ AC Current

Range

Resolution

Accuracy(50Hz/60Hz)

Overload

protection

20A

10mA

±(2%rdg + 10dgts)

1000A

200A

100mA

600A

1A

1000A





 ■ AC Voltage

Range

Resolution

Accuracy(40Hz~400Hz)

Input

impedance

Overload

protection

200V

100mV

±(1.5%rdg + 8dgts)

10MΩ

DC1100V AC800V

750V

1V





GENERAL SPECIFICATIONS :

  • Operating Temperature :0℃~40℃, 0-80% RH
  • Sampling rate : 2.5 times per secong
  • The time of peak Value Response : about 100ms
  • Power Source : 9V 1pce
  • Size & Weight : 208 x 65 x 31mm & 330g
  • Accessories : Manual, Battery, Test Leads, Carry Case
