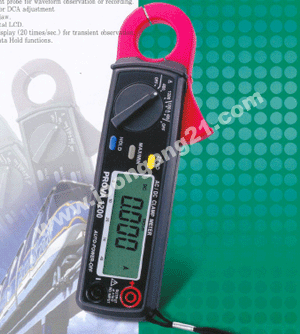

●Accurate DC/AC digital clamp meter for
current measurement ●1200A DC/AC current
measurement ●integrated current probe for waveform
observation or recording ●One touch zero for DCA
adjustment ●23mm diameter jaw ●Large 3-3/4 digital LCD ●Fast bargraph display (20 times/sec.) for
transient observation ●Max/Min and Data Hold
functions
ELECTRICAL SPECIFICATIONS : (23℃±5℃)
■DC Current :
Range
Resolution
Accuracy
Overload Protection
0-400A
0.1A
±2.0%±3dgts
DC 600A
0-1200A
1A
±2.0%±3dgts
DC 2000A
■ AC Current :
Range
Resolution
Accuracy
Overload Protection
50/60Hz
40 - 400Hz
0-400A
0.1A
±2.0%±3dgts
±3.0%±4dgts
AC 600A
0-1200A
1A
±2.0%±3dgts
±3.0%±4dgts
AC 2000A
■ Output at the Terminals :
Range
Accuracy
Overload Protection
DCA 0-400A
DC 1mV/A
±2.0%±0.3A
DCA
0-1200A
DC 0.1mV/A
±2.0%±0.3A
ACA 0-400A
AC 1mV/A
±2.0%±0.3A(50/60Hz)
ACA
0-1200A
AC 0.1mV/A
±2.0%±3A(50/60Hz)
ACA 0-400A
AC 1mV/A
±3.0%±0.4A(40/400Hz)
ACA
0-1200A
AC 0.1mV/A
±3.0%±4A(40/400Hz)
GENERAL SPECIFICATIONS :
Conductor Size : 23mm max. (approx.)
Battery : two 1.5V SUM-3
Display : 3-3/4 LCD with 40 seg. bargraph
Range Selection : manual
Overload Indication : left most digit blinks
Sampling Time : 2 times/sec.
(display) 20 times/sec. (bargraph)
